EPS1400R | Electronic Joystick Steering | Twin Cylinder Single Rudder | Glydus

Unleash precision and power with the Glydus EPS1400R, a high-performance joystick-controlled marine steering system built for demanding conditions. Designed for single rudder configurations, this advanced system offers unmatched control, reliability, and space efficiency.

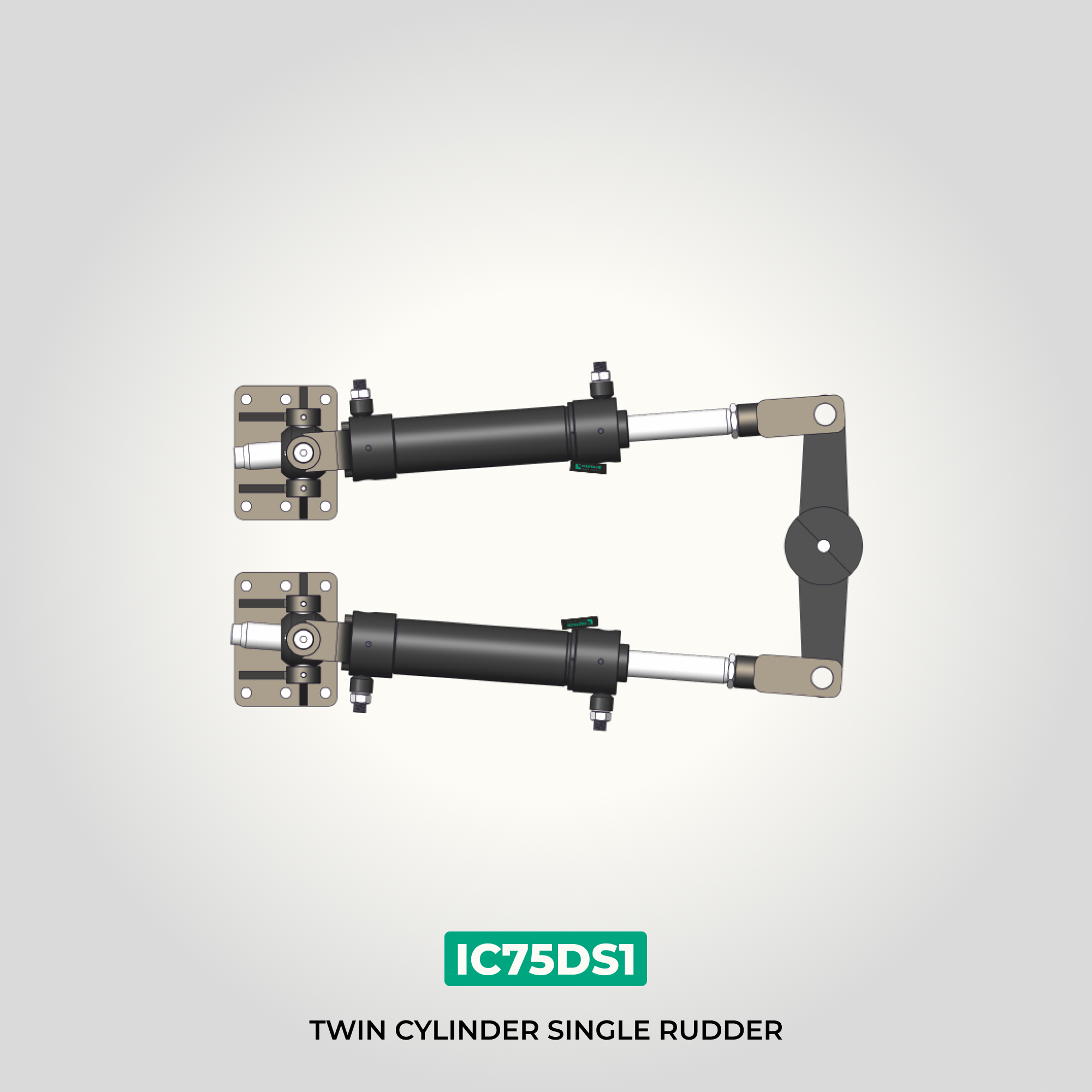

  • Cylinder :-IC75DS1

  • Helm Pump :- H88

  • Max Torque at 70 Bar :- 1400

  • Engine (HP):- Up to 700HP

  • Specifications

  • ORDER GUIDE-TWIN CYLINDER SINGLE RUDDER

    Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power

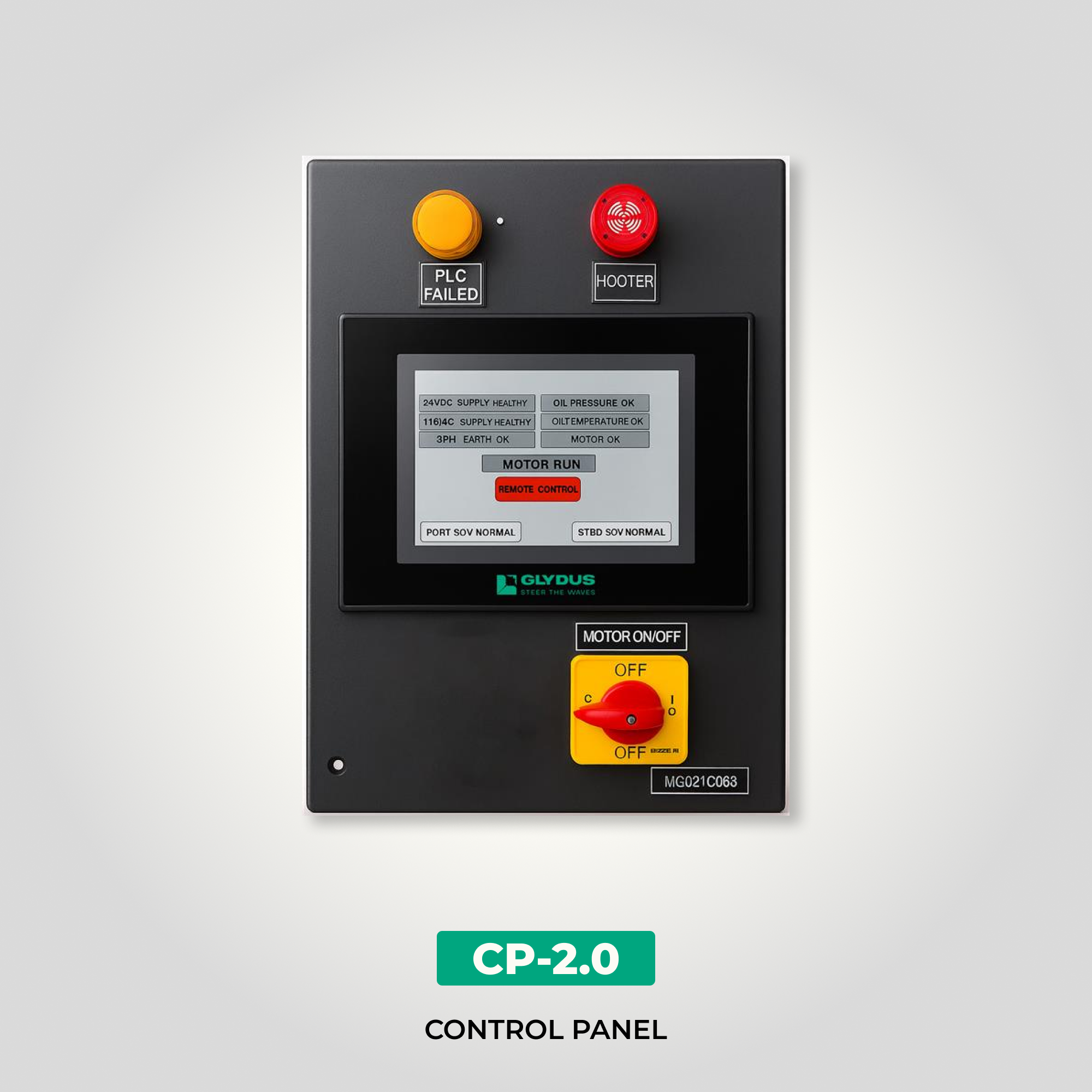

    (HP)    		 Rudder Angle Control Panel Alarm Box
    EPS370R IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
    EPS638R IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
    EPS916R IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
    EPS1400R IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
    EPS2020R IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
    EPS2684R IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0

    ORDER GUIDE-TWIN CYLINDER TWIN RUDDER

    Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power
    (HP)    		 Rudder Angle Control Panel Alarm Box
    EPS370DR IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
    EPS638DR IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
    EPS916DR IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
    EPS1400DR IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
    EPS2020DR IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
    EPS2684DR IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0
