EPS370R Joystick Electronic Power Steering | Twin Cylinder Single Rudder | Glydus
EPS370R Joystick Electronic Power Steering | Twin Cylinder Single Rudder | Glydus - Image 2
EPS370R Joystick Electronic Power Steering | Twin Cylinder Single Rudder | Glydus - Image 3
EPS370R Joystick Electronic Power Steering | Twin Cylinder Single Rudder | Glydus - Image 4
EPS370R Joystick Electronic Power Steering | Twin Cylinder Single Rudder | Glydus - Image 5
EPS370R Joystick Electronic Power Steering | Twin Cylinder Single Rudder | Glydus - Image 6
EPS370R Joystick Electronic Power Steering | Twin Cylinder Single Rudder | Glydus - Image 7

EPS370R Joystick Electronic Power Steering | Twin Cylinder Single Rudder | Glydus

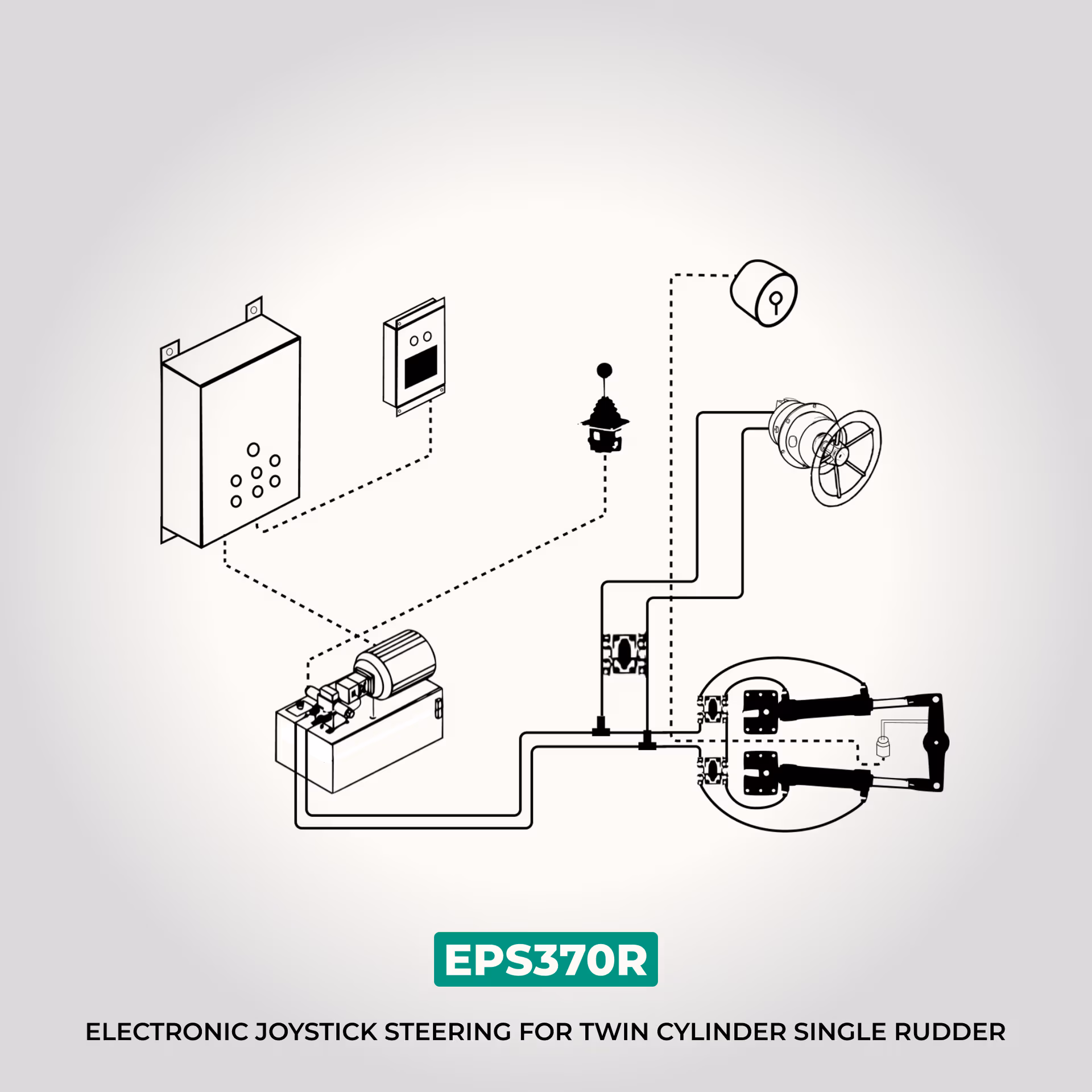

Experience next-level marine control with the Glydus EPS370R joystick-controlled electronic power steering solution engineered for precision, safety, and space efficiency. Designed for boats a single rudder, this model is ideal for vessels requiring tight maneuverability and intuitive handling.

Tags: , , ,

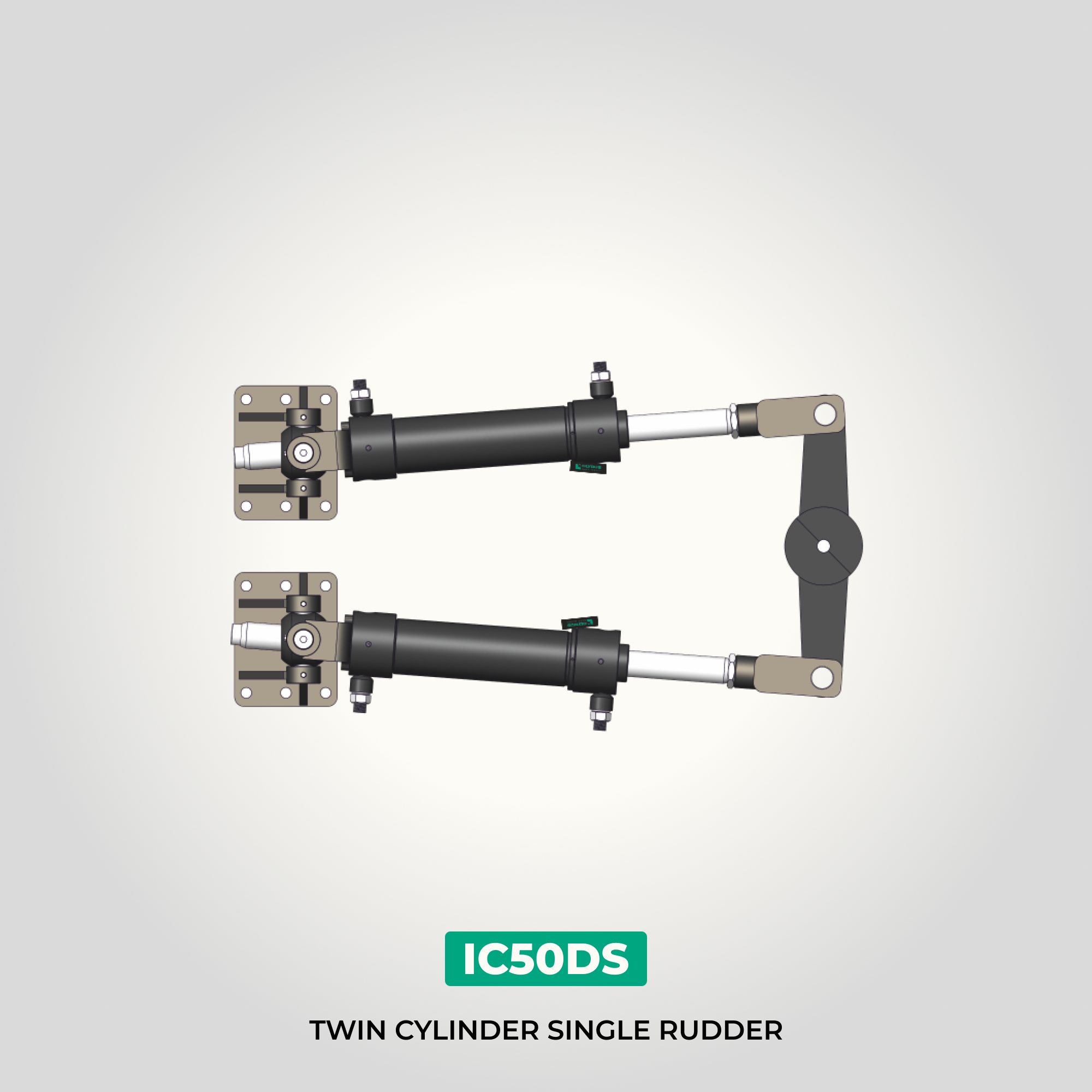

  • Cylinder :-IC50DS

  • Helm Pump :- H63

  • Max Torque at 70 Bar :- 370

  • Engine (HP):- Up to 400HP

  • Specifications

  • ORDER GUIDE-TWIN CYLINDER SINGLE RUDDER

    Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power
    (HP)    		 Rudder Angle Control Panel Alarm Box
    EPS370R IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
    EPS638R IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
    EPS916R IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
    EPS1400R IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
    EPS2020R IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
    EPS2684R IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0

    ORDER GUIDE-TWIN CYLINDER TWIN RUDDER

    Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power
    (HP)    		 Rudder Angle Control Panel Alarm Box
    EPS370DR IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
    EPS638DR IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
    EPS916DR IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
    EPS1400DR IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
    EPS2020DR IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
    EPS2684DR IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0

  • Downloads

  • ORDER GUIDE-TWIN CYLINDER SINGLE RUDDER

    Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power
    (HP)    		 Rudder Angle Control Panel Alarm Box
    EPS370R IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
    EPS638R IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
    EPS916R IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
    EPS1400R IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
    EPS2020R IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
    EPS2684R IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0

    ORDER GUIDE-TWIN CYLINDER TWIN RUDDER

    Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power
    (HP)    		 Rudder Angle Control Panel Alarm Box
    EPS370DR IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
    EPS638DR IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
    EPS916DR IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
    EPS1400DR IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
    EPS2020DR IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
    EPS2684DR IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0

  • Support

  • ORDER GUIDE-TWIN CYLINDER SINGLE RUDDER

    Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power
    (HP)    		 Rudder Angle Control Panel Alarm Box
    EPS370R IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
    EPS638R IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
    EPS916R IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
    EPS1400R IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
    EPS2020R IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
    EPS2684R IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0

    ORDER GUIDE-TWIN CYLINDER TWIN RUDDER

    Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power
    (HP)    		 Rudder Angle Control Panel Alarm Box
    EPS370DR IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
    EPS638DR IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
    EPS916DR IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
    EPS1400DR IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
    EPS2020DR IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
    EPS2684DR IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0

ORDER GUIDE-TWIN CYLINDER SINGLE RUDDER

Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power
(HP)		 Rudder Angle Control Panel Alarm Box
EPS370R IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
EPS638R IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
EPS916R IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
EPS1400R IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
EPS2020R IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
EPS2684R IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0

ORDER GUIDE-TWIN CYLINDER TWIN RUDDER

Part No. Cylinder Power Helm Pump Joystick Torque (kgm) ย  ย Engine Power
(HP)		 Rudder Angle Control Panel Alarm Box
EPS370DR IC50DS EPP-1.0 H63 JS-1.0 370 400 RI-1.0 CP-1.0 AB-1.0
EPS638DR IC63DS EPP-1.0 H68 JS-1.0 638 500 RI-1.0 CP-1.0 AB-1.0
EPS916DR IC75DS EPP-1.0 H88 JS-1.0 916 600 RI-1.0 CP-1.0 AB-1.0
EPS1400DR IC75DS1 EPP-1.0 H88 JS-1.0 1400 700 RI-1.0 CP-1.0 AB-1.0
EPS2020DR IC100DS EPP-1.0 H88 JS-1.0 2020 800 RI-1.0 CP-1.0 AB-1.0
EPS2684DR IC100DS1 EPP-1.0 H88 JS-1.0 2684 1000 RI-1.0 CP-1.0 AB-1.0
