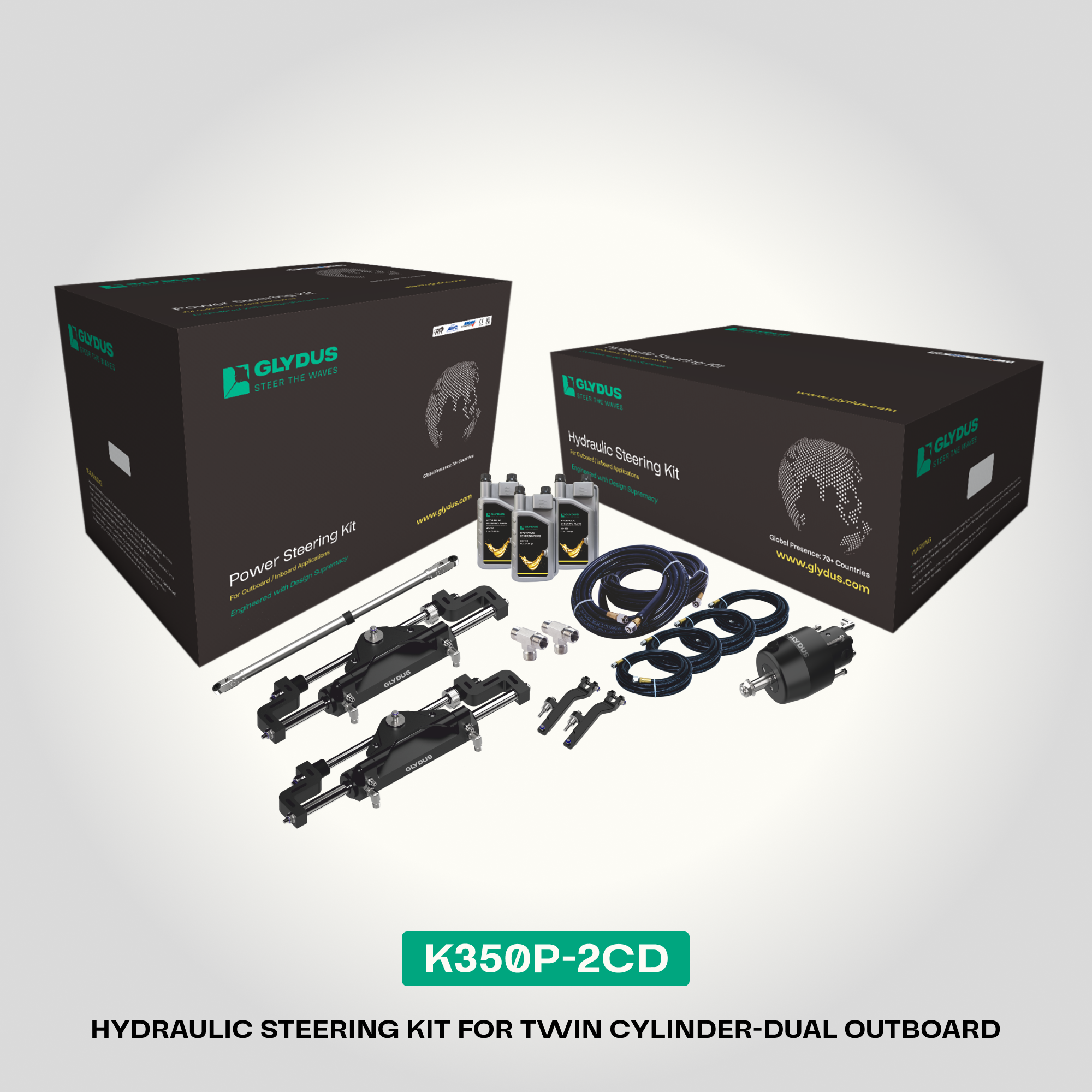

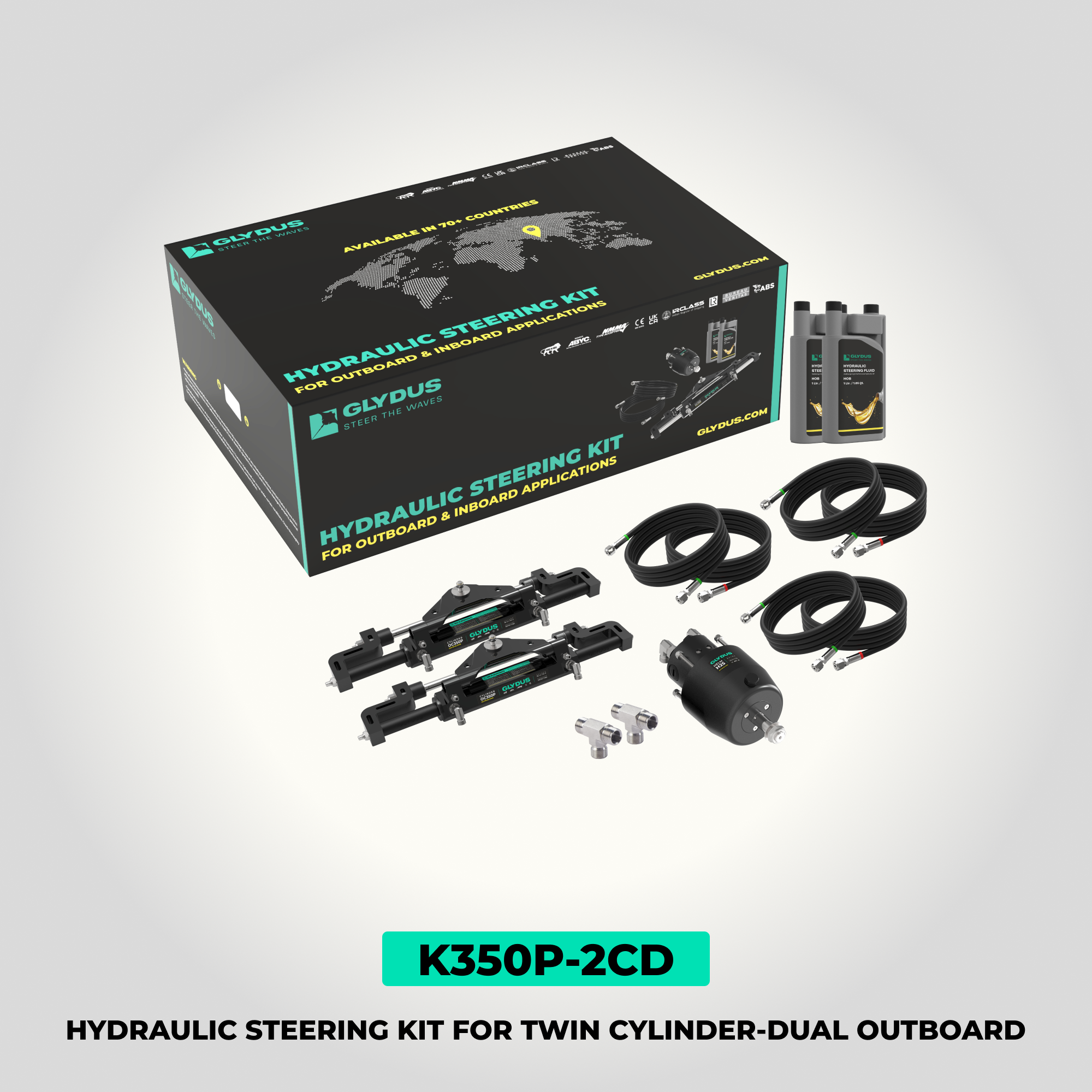

Hydraulic Steering kit for Dual Outboard upto 700HP | K350P-2CD

Built for aggressive water action Glydus hydraulic steering kit ensures superior precision and durability for twin outboards up to 700hp. Boating just got serious.

The Standard Power Steering Kit for Single Cylinder-Single Outboard includes following items:

Part No.	Description	Quantity
H25	Helm Pump 33cc	1 No.
OC-350P	Heavy Duty Cylinder for outboard up to 700 HP	1 No.
HO-150	Hydraulic Steering Fluid	2 Liters
CT-7.5	Hydraulic Hose 7.5 meters with factory crimped hose connectors	2 Nos.

Standard Wheel Turns: 9.3 Lock to Lock

Note:

1. The Steering wheel can be ordered with the standard kit, for more information contact us at the email: care@glydus.com
2. Hose Length can be customized as per customers request/requirement.
3. For higher or lower number of turns concern technical support team at care@glydus.com

Specifications

Application Guide: Dual Cylinder – Dual Outboard

Manufacturer	Year	Model	Cylinder	Notes
Cox Marine	2022-Date	300HP Diesel	OC-350P
Honda	2001-Date	200-300HP 4-Stroke	OC-350P
Johnson/Evinrude	1991-Date	200-300HP 2-Stroke	OC350P	Inc. ETech engines
	1997-Date	200-300HP Ficht	OC350P
	2002-Date	200-225HP 4-Stroke	OC350P
	2007-Date	200-250HP 3.3L V6	OC350P	Inc. H.O. Models
Mercury	1989-Date	200-300HP 2-Stroke EFI	OC350P
	2004-Date	200-300HP PRO XS/OPTIMAX	OC350P
	2003-Date	200HP Verado L4	OC350P
	20017-Date	200-225HP 3.4L V6 4-Stroke	OC350P
	2018-Date	225-350HP 4.6L V8 4-Stroke	OC350P
Oxe	2017- Date	125-200HP 2 Diesel, L4	OC350P
Oxe	2020-Date	300HP Diesel, L6	OC350P
Selva	2007-Date	200-300HP 4.2L V6	OC350P
Suzuki	1986-2013	200-225HP 2/4-Stroke	OC350P
	2004- Date	200-350HP 3.6 4.0L V6	OC350PI
	2013-Date	200HP 4 Cylinder	OC350P
	2017-Date	300-350HP Duoprop 4.4L	OC350PI	Must use Glydus Power Assisted Steering
Tohatsu	2014-Date	200-250HP 4-Stroke	OC350P	Must use Tohatsu tiller bolt 3E0-84917-0
Yamaha	1986-Date	200-300HP 2-Stroke	OC-350P
	1997-Date	200-250HP 4-Stroke	OC-350P
	2000-Date	200-300HPDI	OC-350P
	2007-Date	200-300HP 4.2L V6 4-Stroke	OC-350P
	2007-Date	300-350HP 5.3 V8 4-Stroke	OC-350P
	2012-Date	200HP 2.8L 4Cylinder	OC-350P
Neander Marine	2017-Date	Dtorque111-90HP	OC-350P

Note:

Your splashwell should be wide enough for the installation of the Cylinder. Check Installation Manual for space requirements.

Application	Component	Part No.	Quantity	Wheel Turn
Up to 700Hp	Helm Pump	H33	1	9.3
Up to 700Hp	Cylinder	OC350P	2	9.3
Up to 700Hp	Hydraulic Hose	CT-7.5	2	9.3
Up to 700Hp	Hydraulic Hose	CT-1.0	4	9.3

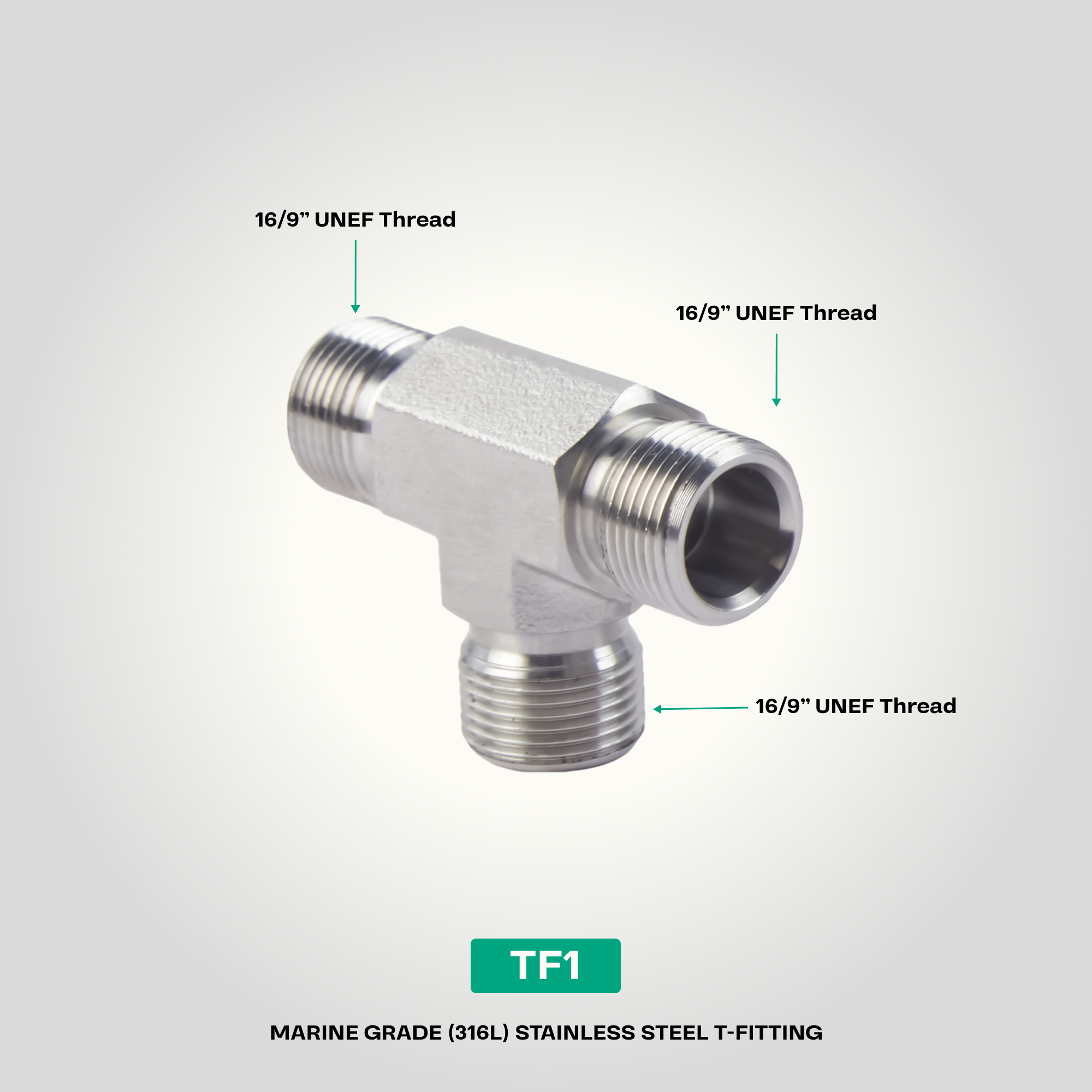

Up to 700Hp	T-Fitting	TF1	2	9.3
Up to 700Hp	Hydraulic Oil	HO-150	2	9.3

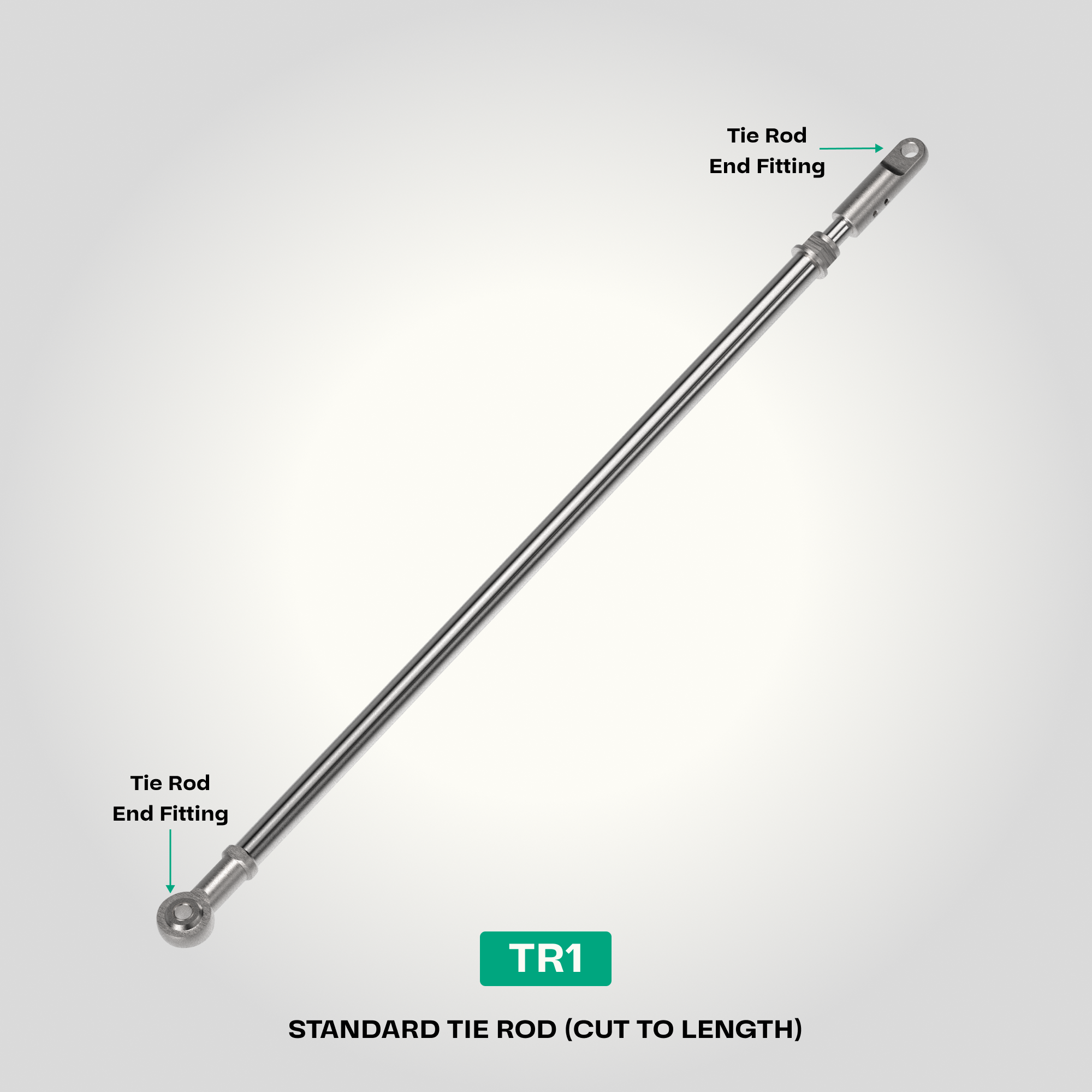

Additional Component	Tie Rod kit	TRX	1

Catalogues

Sr.No.	Particulars	Download links
1	Glydus-Outboard-Catalog 2025	Click here

Manual

Sr.No.	Particulars	Download links
1	Glydus Installation Manual	Click here

Power-assisted Steering

Sr.No.	Particulars	Download links
1	Installation video	Click here
