K350-1CD | Hydraulic Steering for Dual Outboard upto 350HP
K350-1CD | Hydraulic Steering for Dual Outboard upto 350HP - Image 2
K350-1CD | Hydraulic Steering for Dual Outboard upto 350HP - Image 3
K350-1CD | Hydraulic Steering for Dual Outboard upto 350HP - Image 4
K350-1CD | Hydraulic Steering for Dual Outboard upto 350HP - Image 5
K350-1CD | Hydraulic Steering for Dual Outboard upto 350HP - Image 6
K350-1CD | Hydraulic Steering for Dual Outboard upto 350HP - Image 7

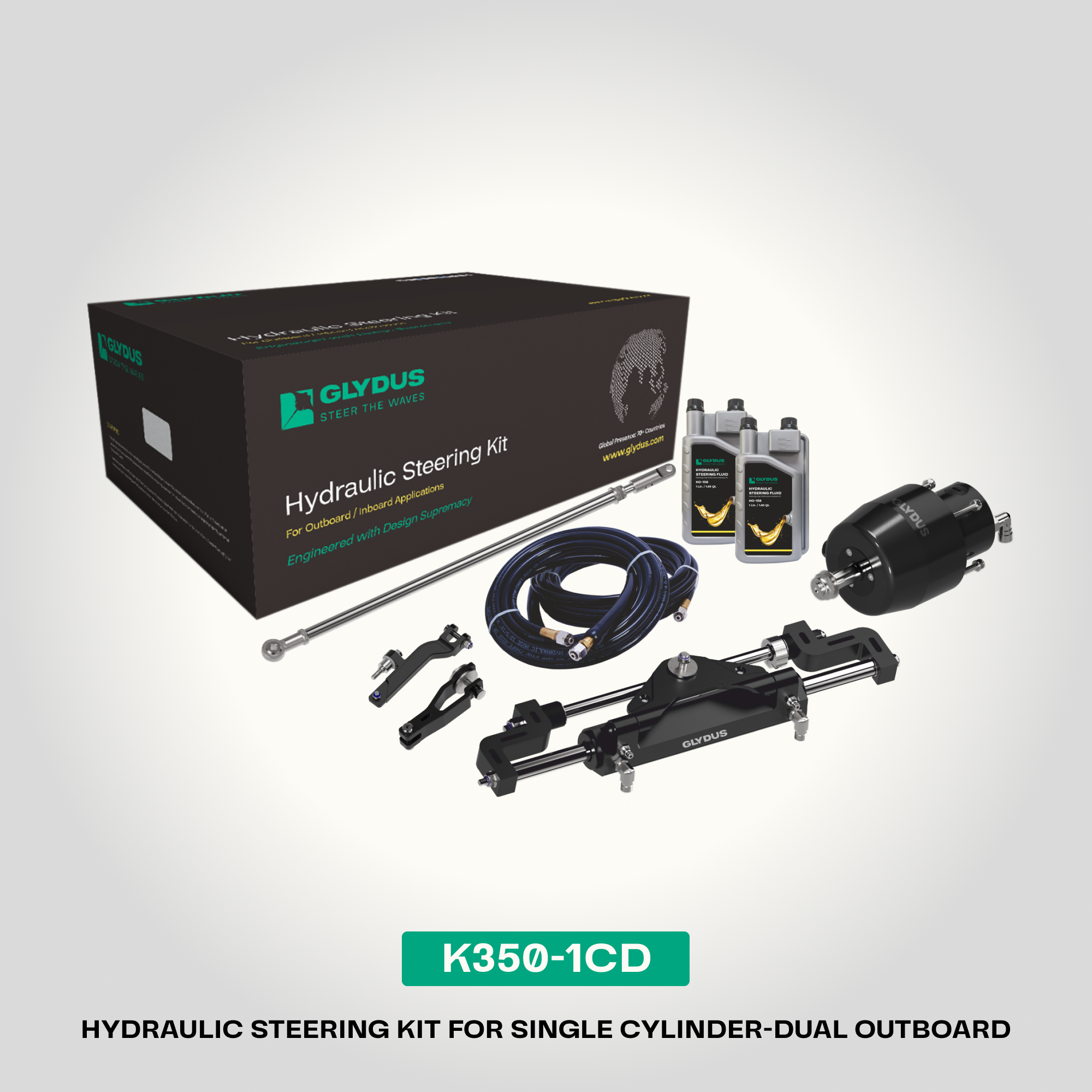

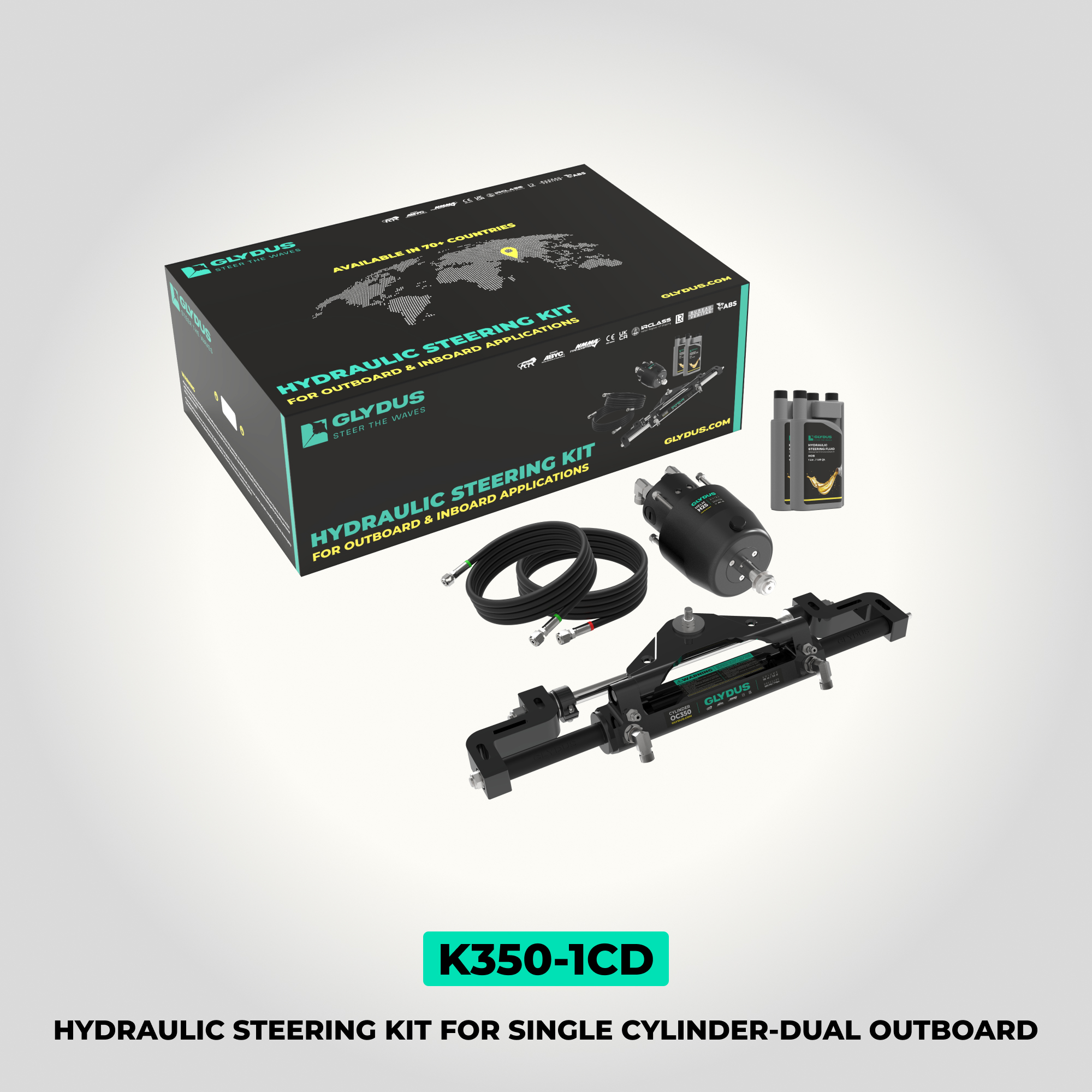

K350-1CD | Hydraulic Steering for Dual Outboard upto 350HP

Best boat steering system control with Glydus Hydraulic Steering Kit for Single Cylinder Dual Outboard up to 450hp. Enjoy precise control in regular marine use. (Regular Use)

The Standard Power Steering Kit for Single Cylinder-Single Outboard includes following items:
Part No.DescriptionQuantity

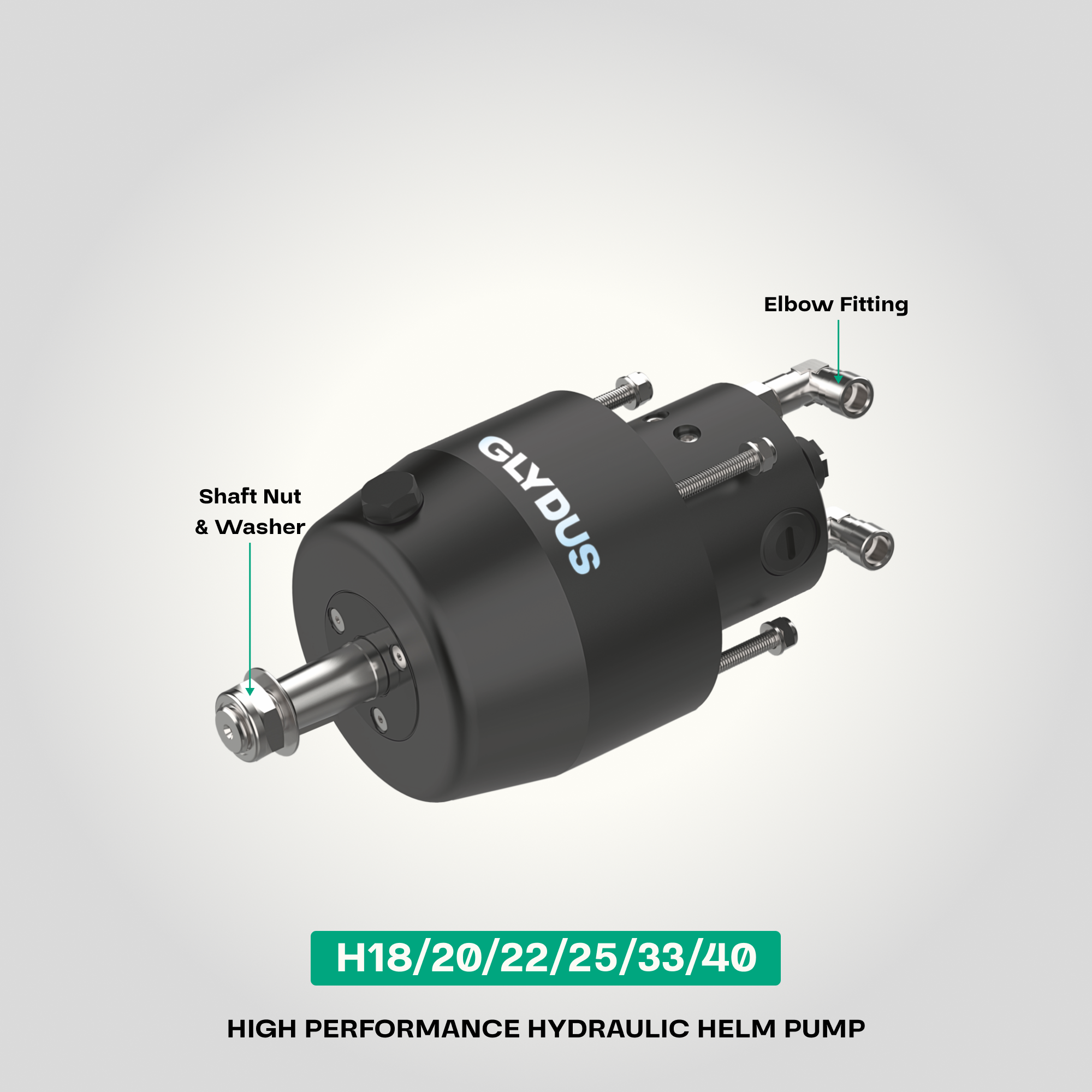

H25Helm Pump 25cc1 No.

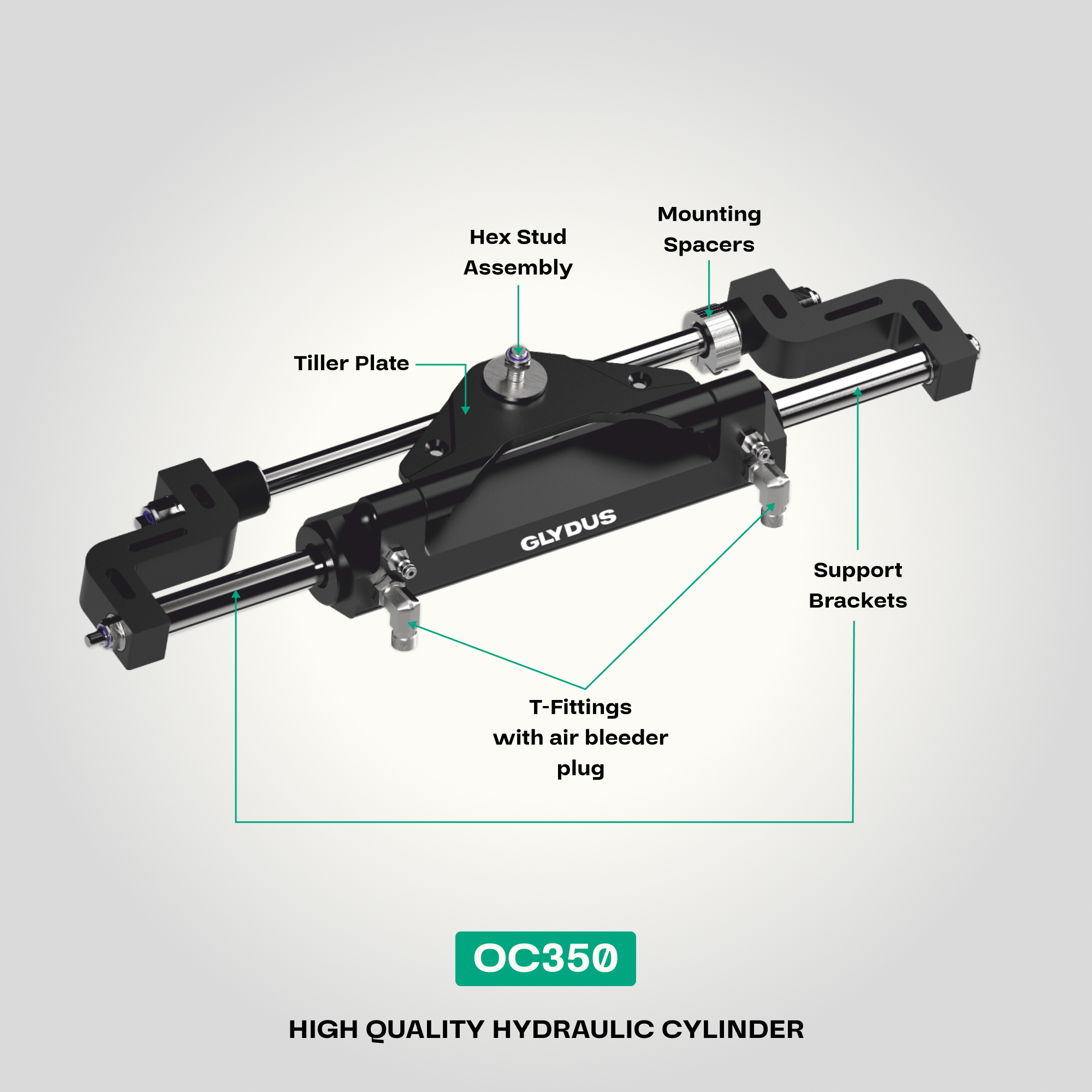

OC-350Cylinder for outboard up to 350 HP1 No.

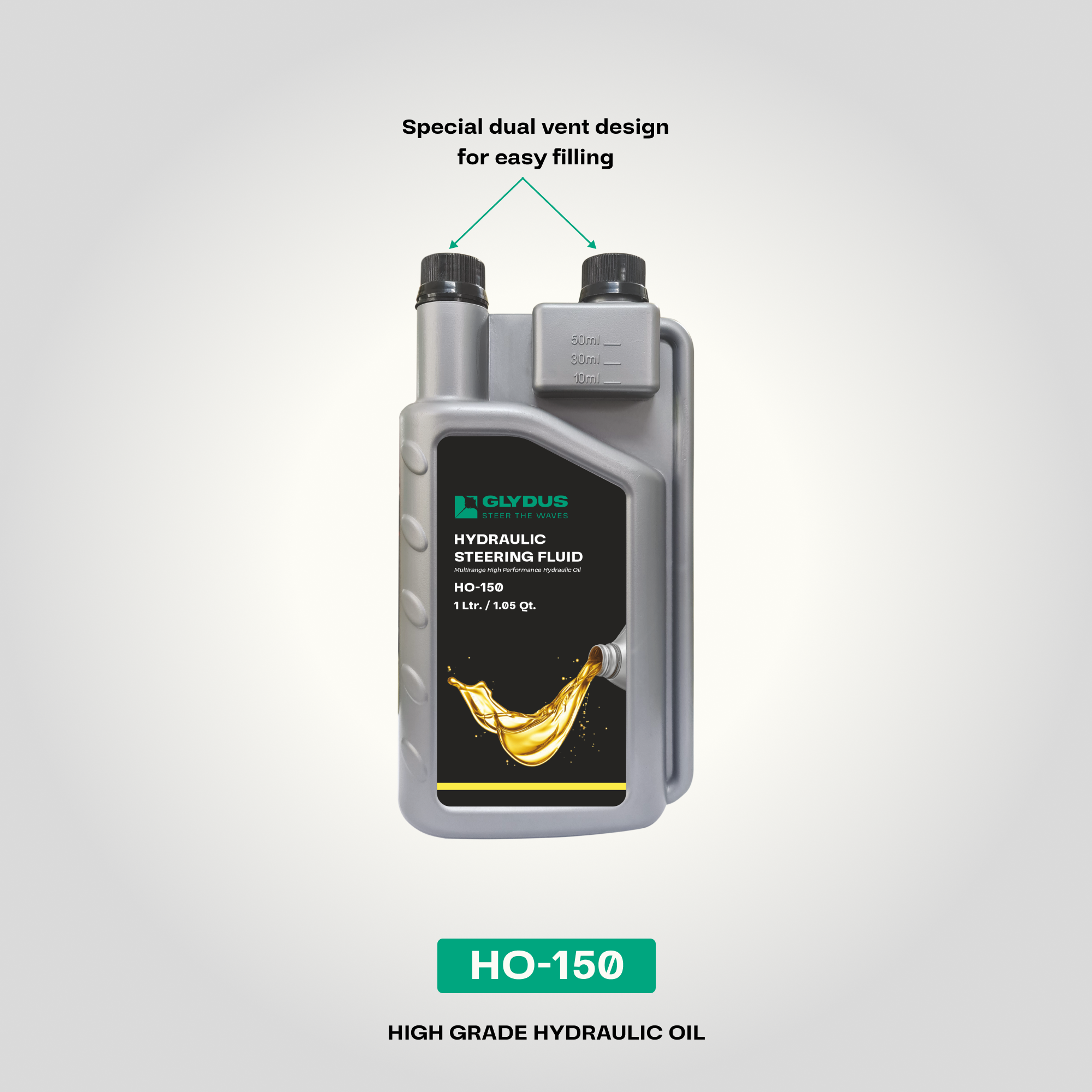

HO-150Hydraulic Steering Fluid2 Liters

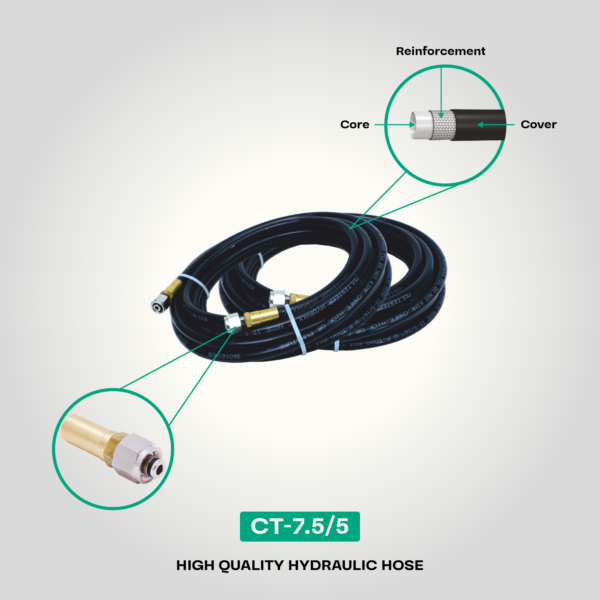

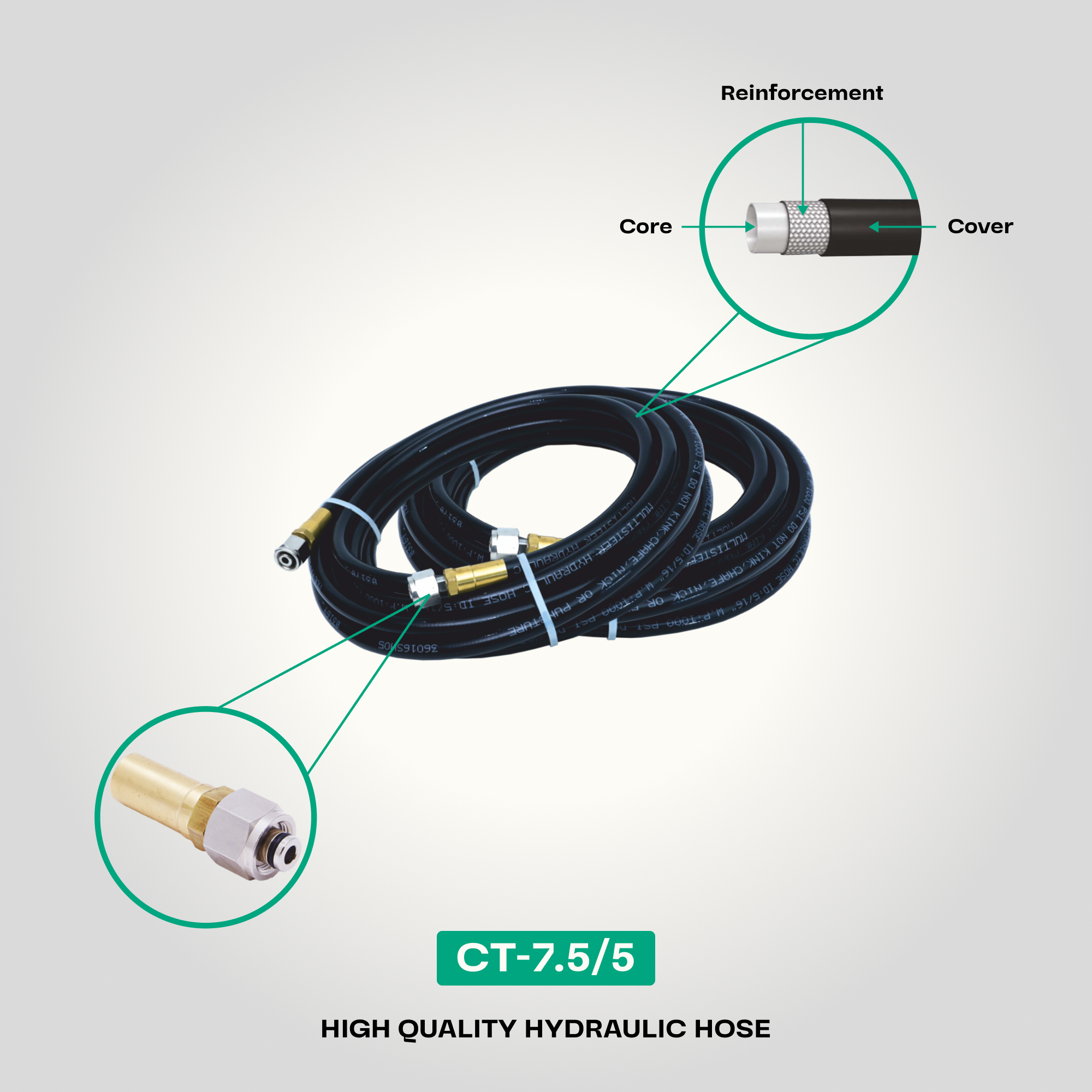

CT-7.5Hydraulic Hose 7.5 meters with factory crimped hose connectors2 Nos.
Standard Wheel Turns: 5.2 Lock to Lock
Note:

1. The Steering wheel can be ordered with the standard kit, for more information contact us at the email: [email protected]
2. Hose Length can be customized as per customers request/requirement.
3. For higher or lower number of turns concern technical support team at [email protected]

  • Specifications

  • Application Guide: Single Cylinder – Dual Outboard

    ManufacturerYearModelCylinderNotes

    Cox Marine

    		2022-Date300HP DieselOC-350I

    Honda

    		1996-Date60-90HP 4-StrokeOC-350Requires Spacer Kit SP1
    1998-Date115-130HP 4-StrokeNA
    1998-Date30-50HP 4-StrokeOC-350
    2001-Date150HP 4-Stroke OC-350
    2001-2022200-250HP 4-Stroke OC-350L
    2003-Date135HP 4-Stroke OC-350
    2011-Date115HP 4-Stroke OC-350
    2015 Date100HP 4-Stroke OC-350
    2023-Date200-250HP 4-Stroke OC-350

    Johnson/Evinrude

    		1991-Date40-300HP 2-StrokeOC350Inc. ETech engines
    1997-Date75-300HP FichtOC350
    1998-Date40-140HP 4-StrokeOC350IRequires Spacer Kit SP1
    200-2003155HP FichtOC350IRequires Spacer Kit SP1
    2002-Date200-225HP 4-StrokeOC350
    2007-Date3.3L V6 200-250HPOC350Inc.H.O. models

    Mercury

    		1989-Date75-300HP 2-StrokeOC350
    1998-200730-60HP 4-StrokeOC350NRequires Spacer kit SP1
    2008-Date60HP 4-StrokeOC350
    2004-Date115-300HP PRO XSOC350
    1993-2007150-200HP VeradoOC350
    2017-Date175-225HP 3.4L V6 4-StrokeOC350
    2018-Date250-300HP 4.6L V8 4-StrokeOC350

    Oxe

    		2017- Date125-200HP 2 Diesel, L4 OC350P
    2020-Date300HP Diesel, L6 OC350P

    Selva

    		2000-201390-115HP 4 StrokeOC350N
    2014-Date115HP 4-StrokeOC350
    2000-Date150HP 4-StrokeOC350
    2007-Date200-300HP 4.2L V6OC350

    Suzuki

    		1986-Date100HP 2-StrokeOC350
    1998- Date40-140HP 4-Stroke inc.A SeriesOC350IRequires Spacer kit SP1
    1986-2002115-140HP 2-StrokeOC350Not 1996
    2020-Date115-40HP Be SeriesOC350I
    1986-2013150-225HP 2 and 4-StrokeOC350
    2004-Date200-300HP 3.6 4.0L V6OC350I
    2013-Date150-200HP 4CylinderOC350
    2017-Date300-350HP Duoprop 4.4LOC700IMust use Power Assisted Steering

    Tohatsu

    		1990-Date40-140HP 2 StrokeOC350
    2014-Date60-150HP 4-StrokeOC350
    2014-Date200-250HP 4-StrokeOC350L
    2023-Date75-150HP 4-StrokeOC350Must Use Tohatsu tiller bolt 3E0-84917-0

    Yamaha

    		1990-200340-90HP 2-StrokeOC-350Requires Spacer kit SP1
    1986-Date100-300HP 2-StrokeOC-350
    1997-Date80-250HP 4-StrokeOC-350
    2000-Date150-300HPDIOC-350
    2003-Date25-70HP 4-StrokeOC-350NRequires Spacer kit SP1
    2007-Date200-300HP 4.2L V6 4-StrokeOC-350
    2007-Date300-350HP 5.3 V8OC-350
    2011-201490-115HP inc. A. SeriesOC-350I
    2012-Date150-200HP 2.8L 4 CylinderOC-350
    2014-Date75-115HP inc.B SeriesOC-350

    Neander Marine

    		2017-DateDtorque111-90HPOC-350



    ApplicationComponent Part No.QuantityWheel Turn
    Up to 450 Hp ( Non-Counter Rotating OutboardHelm PumpH2515.2
    CylinderOC35015.2
    Up to 600 Hp ( Counter Rotating Outboard)Hydraulic HoseCT-7.525.2
    Hydraulic OilHO-15025.2

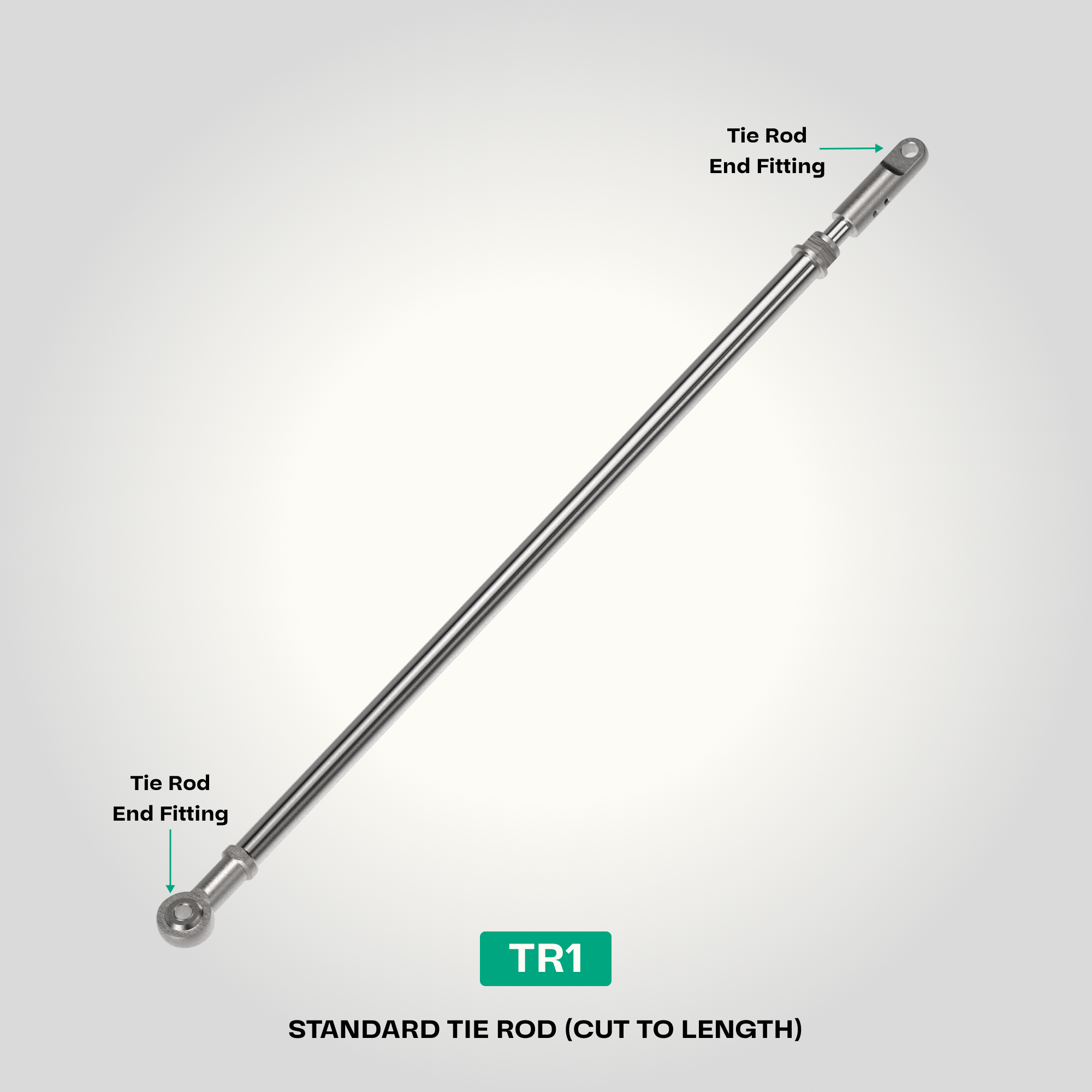

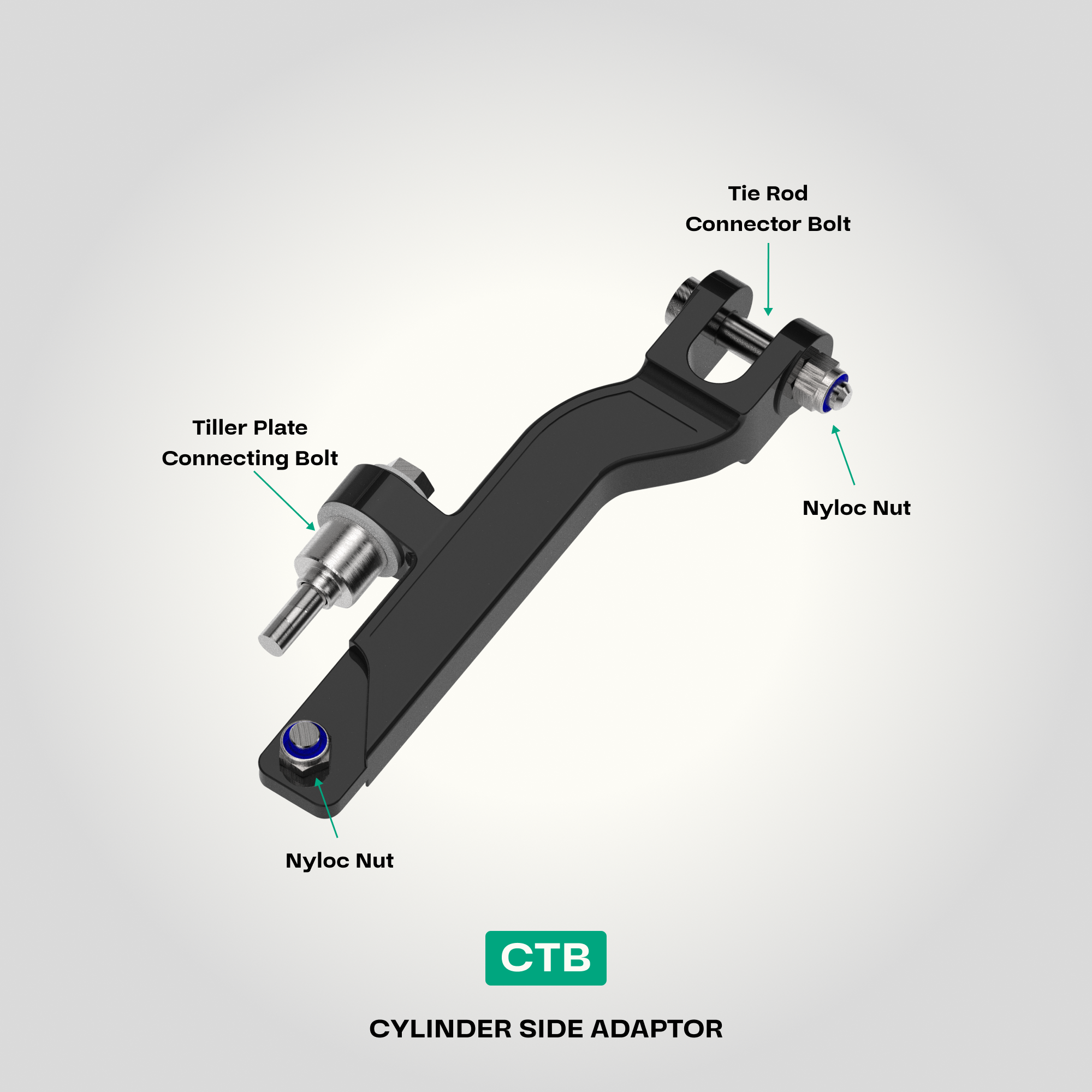

    Additional ComponentTie Rod kitTRX1
