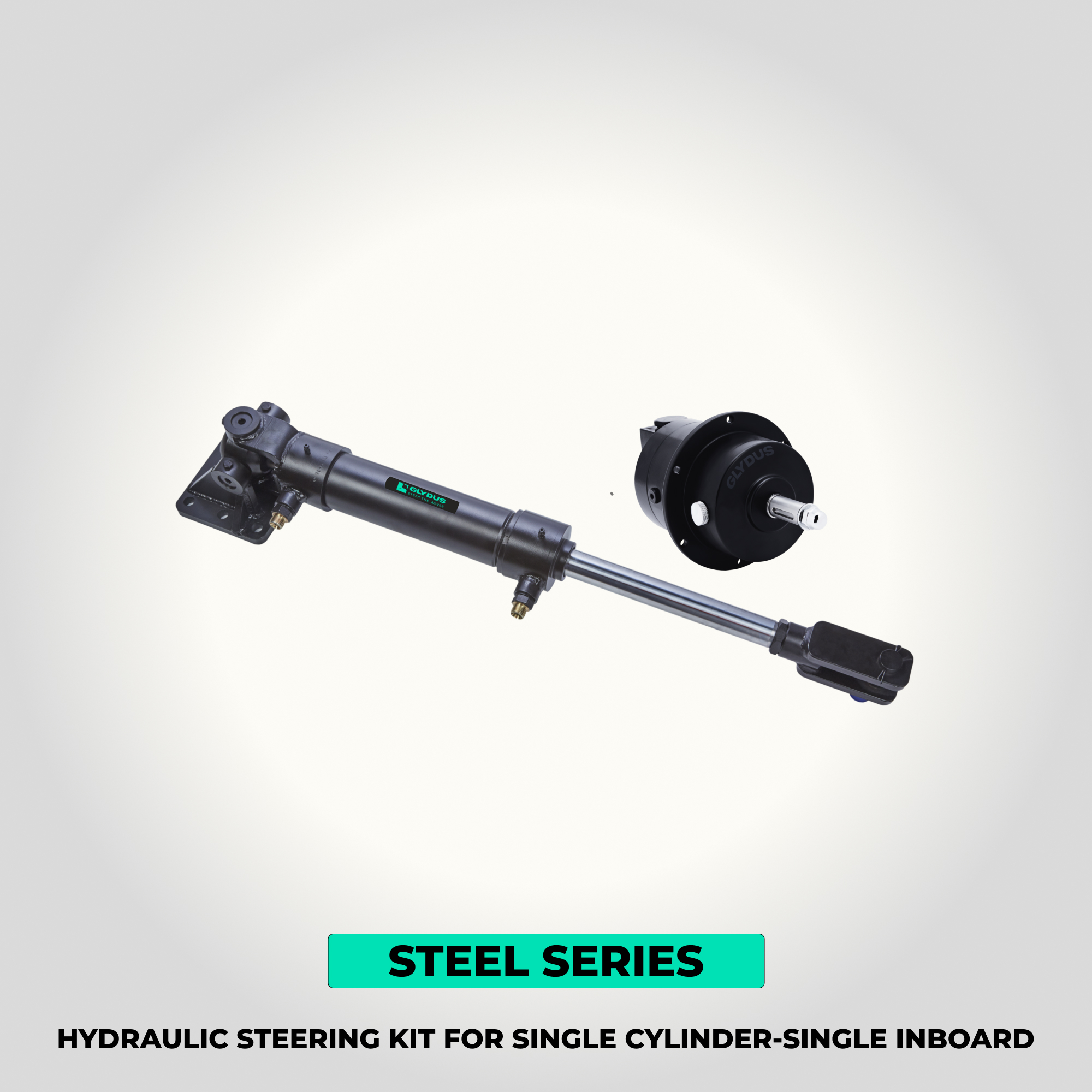

IH63S | Hydraulic Steering for Single Cylinder | Inboard | STEEL SERIES
Take control with this premium steel hydraulic steering system. Specially designed for single-cylinder inboard engines, it provides smooth, responsive handling and stands strong against marine corrosion.
Shipping across the globe!
- Assured high performance
- Warranty applicable
- High quality marine grade material
- Special packaging (First in the industry)
- The product pricing varies depending on specific requirements, taxes, shipping and the delivery region.
Description
| Part No. | Helm Pump | Cylinder | Wheel Turns Lock to Lock | Max Torque at 70 Bar | Engine (HP) |
|---|---|---|---|---|---|
| IH50S | H40 | IC50S | 8.5 | 185 | Up to 300 |
| IH63S | H63 | IC63S | 9.9 | 319 | Up to 350 |
| IH75S | H88 | IC75S | 10.2 | 458 | Up to 450 |
| IH75S1 | H88 | IC75S1 | 15.6 | 700 | Up to 600 |
Note:
- The steering wheel and hoses are not included in the standard kit.
- Hose length can be customized as per customers request.
- Quantity of oil will differ from kit to kit. Please specify your exact requirements while ordering.
- For higher or lower number of turns concern technical support team
