K115R | Hydraulic boat Steering kit | Single Outboard upto 115 HP
The most demanded steering kit for single outboards up to 115hp is known for its performance. A smooth, reliable, and easy-to-install. Glydus boat steering system is offered as a packaged steering kit that includes all need to install a hydraulic steering to the boat.
Shipping across the globe!
- Assured high performance
- Warranty applicable
- High quality marine grade material
- Special packaging (First in the industry)
- The product pricing varies depending on specific requirements, taxes, shipping and the delivery region.
Description

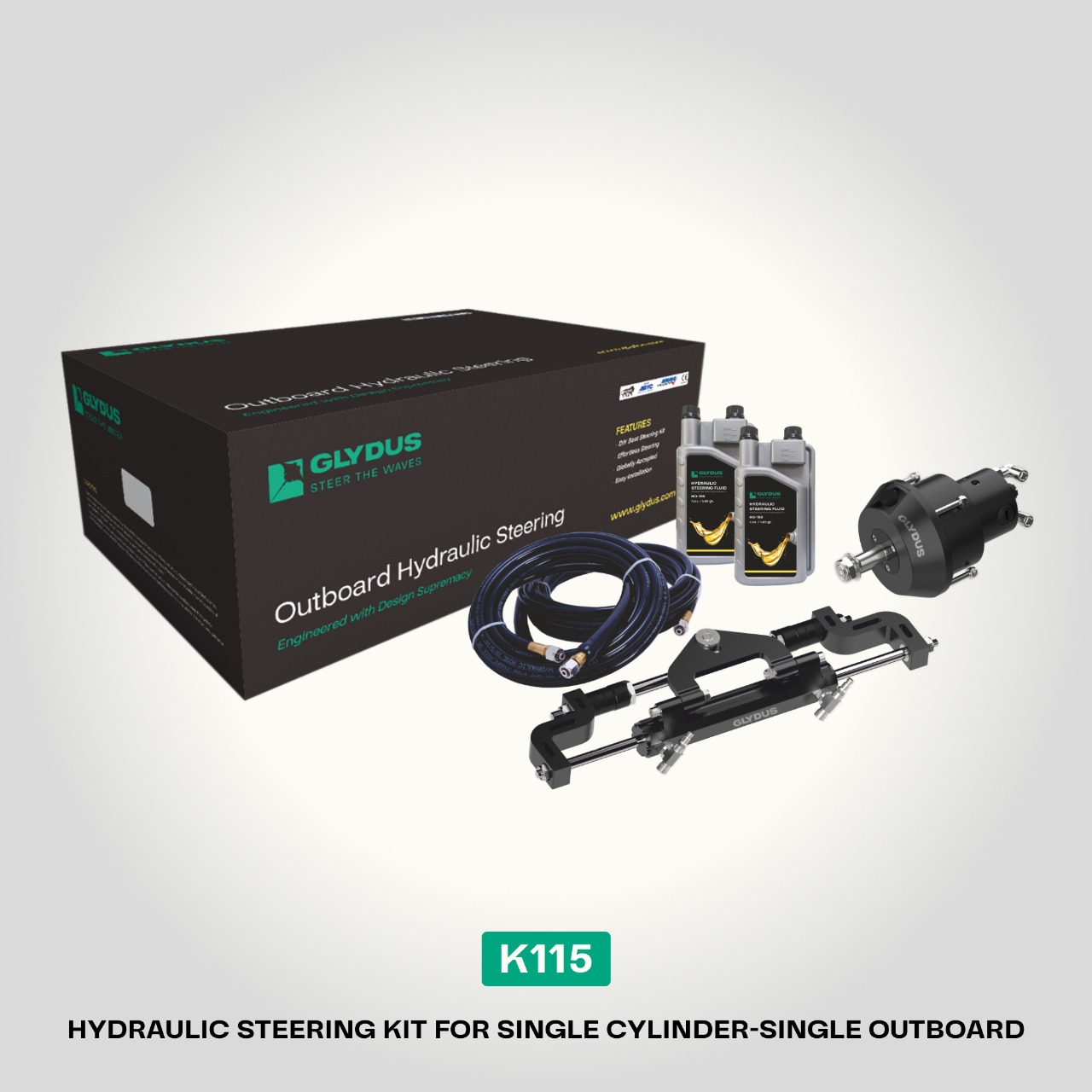

The Standard Hydraulic Steering Kit for Single Cylinder-Single Outboard includes following items:
| Part No. | Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Description | Quantity |
|---|---|---|

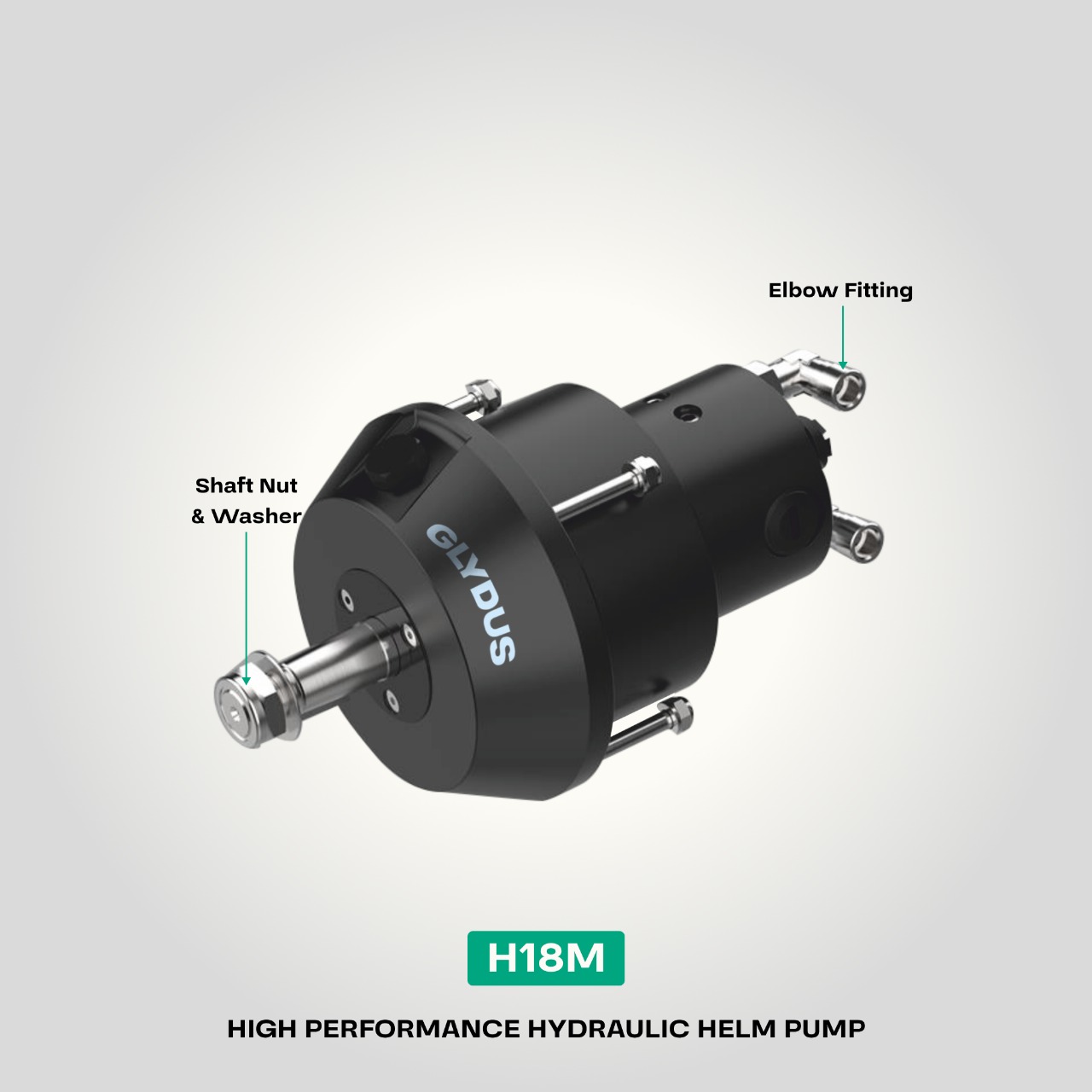

| H18M | Mid Mount Helm Pump 18cc | 1 No. |

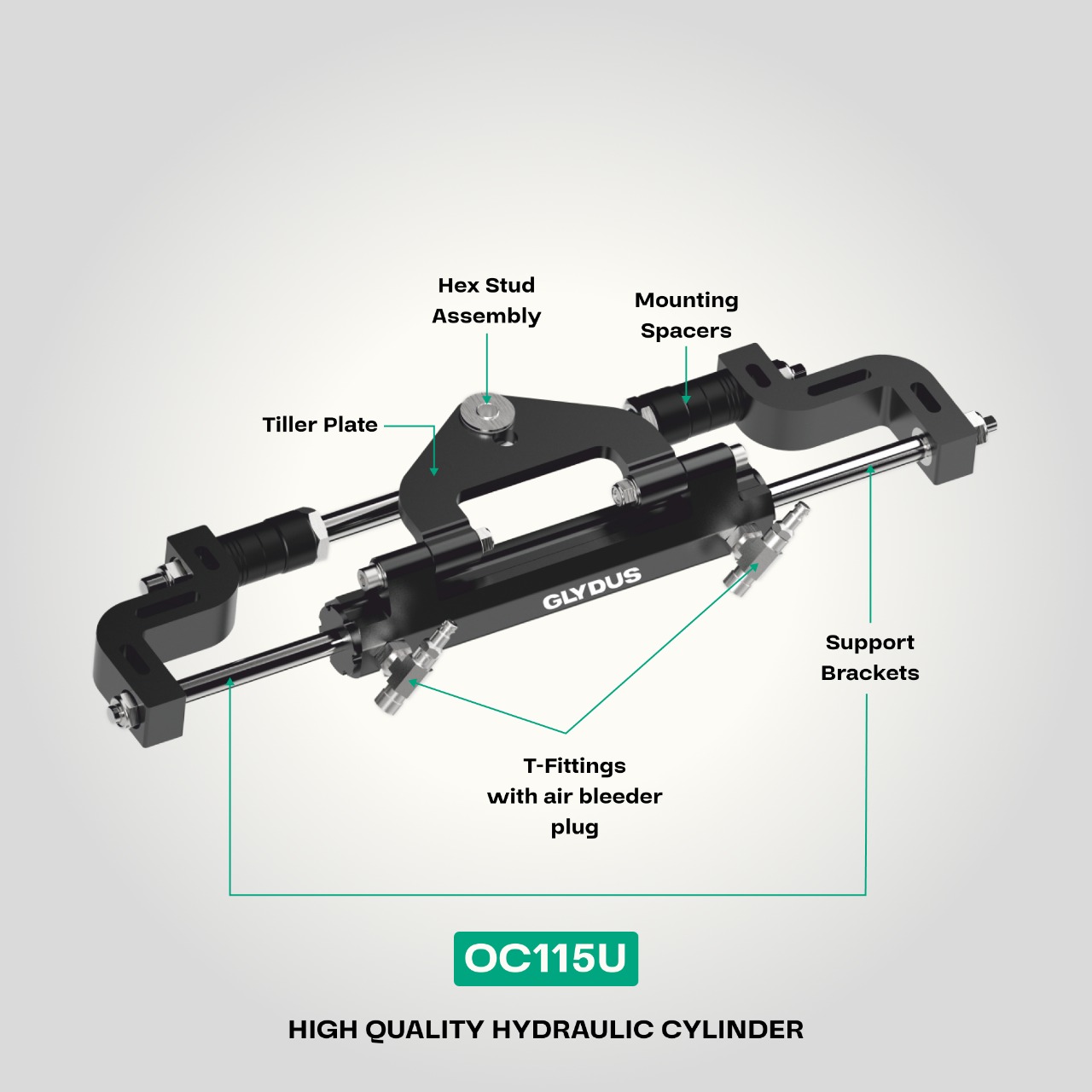

| OC115 | Cylinder for outboard up to 115 HP | 1 No. |
| HOB | Hydraulic Steering Fluid | 2 Liters |
| CT-5.0 | Hydraulic Hose 5 meter with factory crimped hose connectors | 2 Nos. |
| Important Notes |
|---|
| Note A: To avoid problems with outboard trim and tilt, the outboard clamp brackets must be cut or ground down, and the outboard should be bolted directly to the transom. |
| Note B: Steering hook Yamaha Part #63D-48511-00-4D must be installed. |
| Note C: High-performance 115HP outboards and any outboard using a 4-3/4″ gear case such as COMMAND THRUST must use Glydus 350HP Cylinder. |
Application Guide: Single Cylinder – Single Outboard
| Manufacturer | Year | Model | Cylinder | Notes |
|---|---|---|---|---|
| Honda | 1992-Date | 30-50HP 4-Stroke | OC115U | See Note A |
| 1996-Date | 75-90HP 4-Stroke | OC115U | ||
| 2015-Date | 100HP 4-Stroke | OC115U | ||
| 1998-2010 | 115HP 4-Stroke | NA | ||
| 2003-Date | 135-115HP 4-Stroke | OC115U | ||
| 2010-Date | 115HP 4-Stroke | OC115U | ||
| Johnson / Evinrude Note: 115HP 2-Stroke requires tiller plate inverted |
1991-Date | 40-115HP inc. E-Tec | OC115 | See Note A |
| 1997-Date | 115HP Ficht | OC115I | See Note C | |
| 2017-Date | 75-115HP Ficht | OC115I | Requires Spacer Kit SP1 | |
| 1998-Date | 40-115HP 4-Stroke | OC115I | ||
| Selva | 2000-Date | 25-70HP 4-Stroke | OC115N | Requires Spacer Kit SP1 |
| 2000-Date | 90-115HP 4-Stroke | OC115U | See Note 5 | |
| 2011-2013 | 115HP 4-Stroke | OC115I | ||
| Yamaha | 1998-Date | 40-50HP 2-Stroke | OC115 | See Note A |
| 1998-Date | 60HP 2-Stroke | OC115 | See Note B | |
| 1986-Date | 70-90HP 2-Stroke | OC115 | Requires Spacer Kit SP1 | |
| 1997-Date | 80-115HP 4-Stroke | OC115U | See Note C | |
| 2000-Date | 25-70HP 4-Stroke | OC115N | Requires Spacer Kit SP1 | |
| 2011-2014 | 90-115HP A Series | OC115I | ||
| 2014-Date | 90-115HP B Series | OC115U |
Note:
- The Steering wheel can be ordered with the standard kit. For more information, contact us at the email: care@glydus.com
- Hose Length can be customized as per the customer’s request/requirement.
- For a higher or lower number of turns concern technical support team at care@glydus.com
- Wheel Turns: 5.2 Lock to Lock
