K175 | Hydraulic Steering for Outboard upto 175HP
K175 | Hydraulic Steering for Outboard upto 175HP - Image 2
K175 | Hydraulic Steering for Outboard upto 175HP - Image 3
K175 | Hydraulic Steering for Outboard upto 175HP - Image 4
K175 | Hydraulic Steering for Outboard upto 175HP - Image 5

K175 | Hydraulic Steering for Outboard upto 175HP

Original price was: 3,500.00$.Current price is: 3,450.00$.

The most demanded steering kit for single outboards up to 175hp is known for its performance. A smooth, reliable, and easy-to-install steering system is offered as a packaged steering kit that includes all you need to install a hydraulic steering to the boat.

Tags: , , , , ,

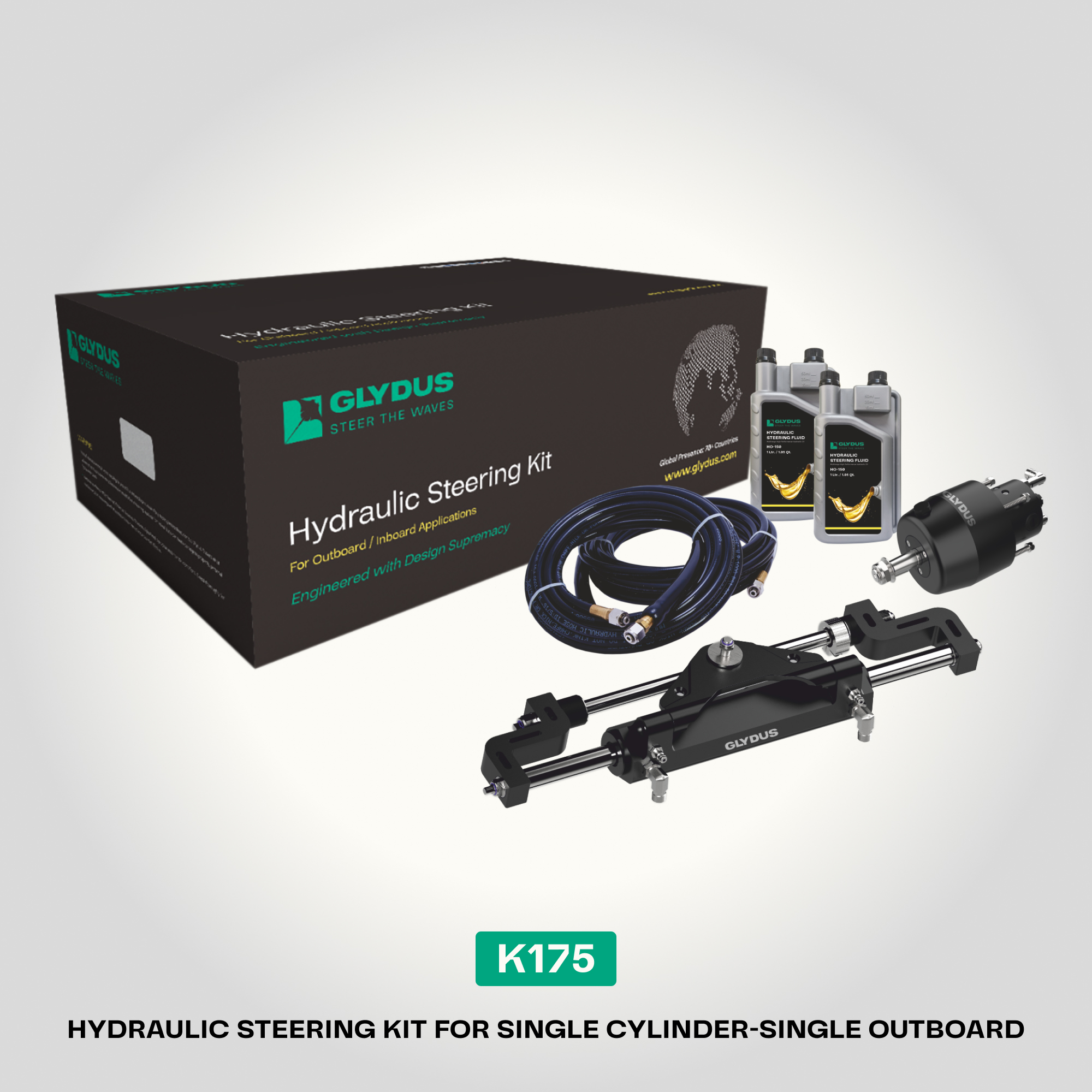

Hydraulic Steering Kit for Single Cylinder-Single Outboard includes following items:
Part No. Description Quantity
H18 Helm Pump 18cc 1 No.

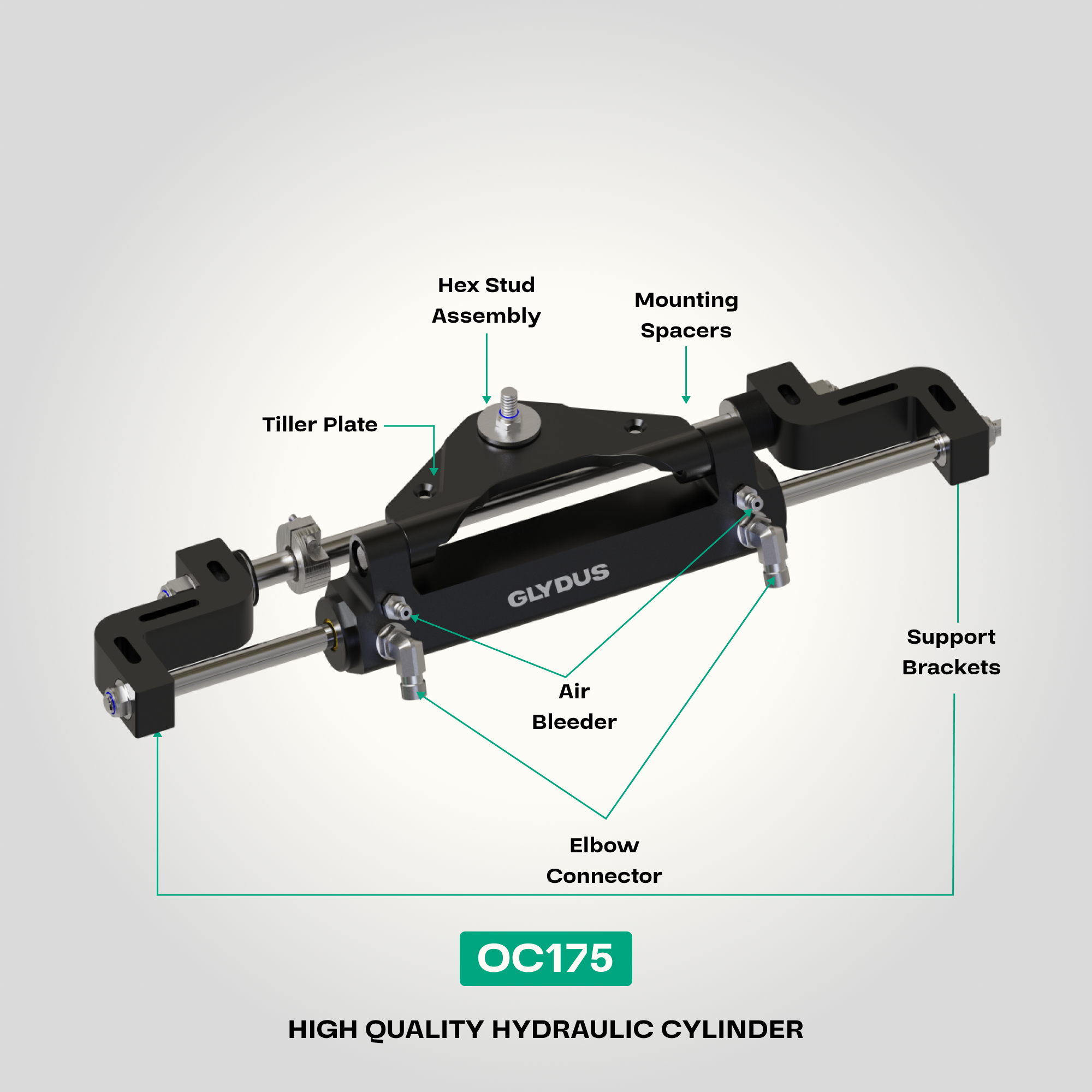

OC-175 Cylinder for outboard up to 175 HP 1 No.
HO-150 Hydraulic Steering Fluid 2 Liters
CT-7.5 Hydraulic Hose 7.5 meters with factory crimped hose connectors 2 Nos.
Standard Wheel Turns: 6.8 Lock to Lock
Note:

1. The Steering wheel can be ordered with the standard kit, for more information contact us at the email: care@glydus.com
2. Hose Length can be customized as per customers request/requirement.
3. For higher or lower number of turns concern technical support team at care@glydus.com

  • Specifications

  • Application Guide: Single Cylinder – Single Outboard

    Manufacturer Year Model Cylinder Notes

    Honda

    		 1992-Date 30-50HP 4-Stroke OC-175 See Note A
    1996-Date 75-90HP 4-Stroke OC-175
    2015-Date 100HP 4-Stroke OC-175
    1998-2010 115HP 4-Stroke NA
    2003-Date 135-115HP 4-Stroke OC-175
    2010-Date 115HP 4-Stroke OC-175

    Johnson/Evinrude

    Note: Johnson 115HP 2-Stroke
    outboards require the tiller
    plate to be inverted

    		 1991-Date 40-115HP inc. E-Tec OC175 See Note A
    1997-Date 115HP Ficht OC175I See Note C
    2017-Date 75-115HP Ficht OC175I Requires Spacer Kit SP1, See note A
    1998-Date 40-115HP 4-Stroke OC175I

    Mercury/Mariner

    		 1984-Date 75-115HP OC-175 See Note C
    1998-2007 40-60HP 2-Stroke OC-175N Requires Spacer kit SP1, See Note A
    2008-Date 40HP 4-Stroke OC-350N Requires Spacer Kit SP1
    2008-Date 60HP 4-Stroke OC-175 See Note A

    Selva

    		 2000-Date 25-70HP 4 Stroke OC-175N Requires Spacer kit SP1, See Note A
    2000-Date 90-115HP 4-Stroke OC-175 See Note 5
    2011-2013 115HP 4-Stroke OC-175I

    Suzuki

    		 1986-Date 150HP 2-Stroke OC-175 See Note C
    1987-2002 115HP 2-Stroke OC-175 Requires Spacer kit SP1
    1990-2000 90-100HP 2-Stroke OC-175
    1998-Date 40-70HP 4-Stroke OC-175 Requires Spacer kit SP1, See Note A
    2001-Date 90-115HP 4-Stroke OC-175I Requires Spacer kit SP1

    Tohatsu

    		 1990-Date 40-114HP 2 Stroke OC-175 See Note A
    2014-Date 60-115HP 4-Stroke OC-175

    Neander Marine

    		 2017-Date Dtorque111-90HP OC-175

    Yamaha

    		 1998-Date 40-50HP 2-Stroke OC-175 See Note A
    1998-Date 60HP 2-Stroke OC-175 See Note B
    1986-Date 70-90HP 2-Stroke OC-175 Requires Spacer kit SP1
    1997-Date 80-115HP 4-Stroke OC-175 See Note C
    2000-Date 25-70HP 4-Stroke OC-175N Requires Spacer kit SP1, See Note A
    2011-2014 90-115HP inc.A Series OC-175I
    2014-Date 90-115HP inc.B Series OC-175
    Note:

    1. To Avoid problems with outboard trim and tilt, the outboard clamp brackets must be cut or ground down. and the outboard should be bolted directly to the transom
    2. Steering hook Yamaha Part #63D-48511-00-4D must be installed.
    3. High performance 115HP outboards and any outboard using a 4-3/4″ gear-case such as COMMAND THRUST must use Glydus 350HP Cylinder

    Catalogues

    Sr.No. Particulars Download links
    1 Glydus-Outboard-Catalog 2025 Click here

    Manual

    Sr.No. Particulars Download links
    1 Glydus Installation Manual Click here

    Power-assisted Steering

    Sr.No. Particulars Download links
    1 Installation video Click here

    Need Help with Product?

    Our support team is here to assist you with any issues or questions.
